Parametric vessel model driven by Excel
-
Generates GA drawings & fabrication pack
-
Plate development & DXF cutting files
All delivered ready for production, saving hours of manual drafting
Automation Process
An overview of the information available from the model package
EXCEL INTEGRATION
Full Excel integration: you simply fills the template →Email it to us our automated system reads the data and instantly builds the complete 3D model + full fabrication drawing pack. No expensive software or extra staff required on the client’s side.
Bills of Materials

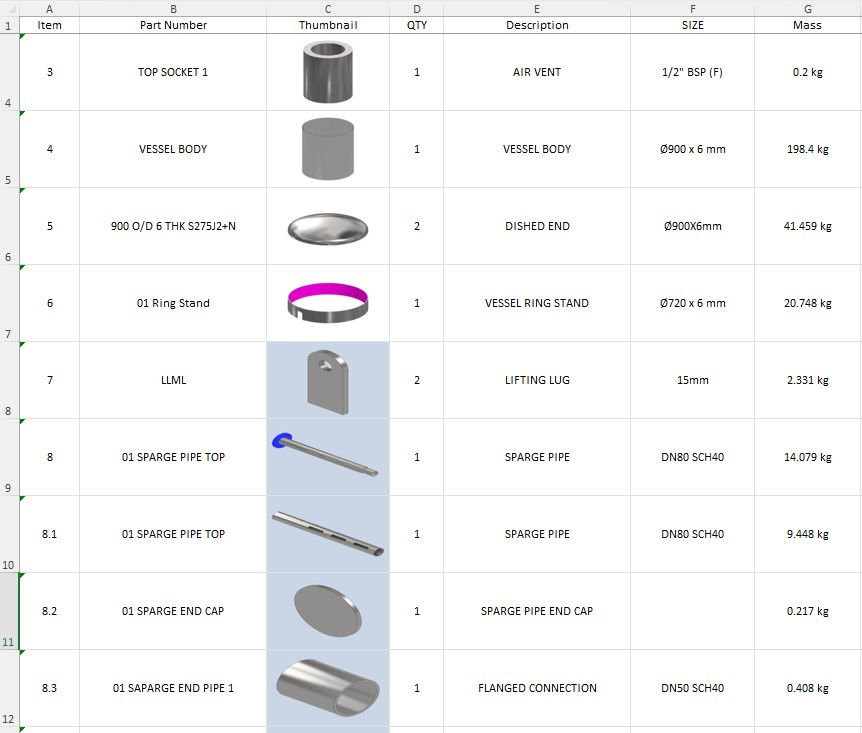

Each vessel includes a complete, production-ready Bill of Materials. Fully customizable to your specifications, ready for fabrication or procurements:
Plate Development & DXF Output
Automated flat plate profiles generated directly from vessel parameters export as a DXF file for laser and plasma cutting.
